Step 3: Natural Language Processing

The coded clinical events from structured EHR data are not the only sources of information. EHR notes also contain a wealth of information. The objective of this notebook is to bring structure to unstructured note data.

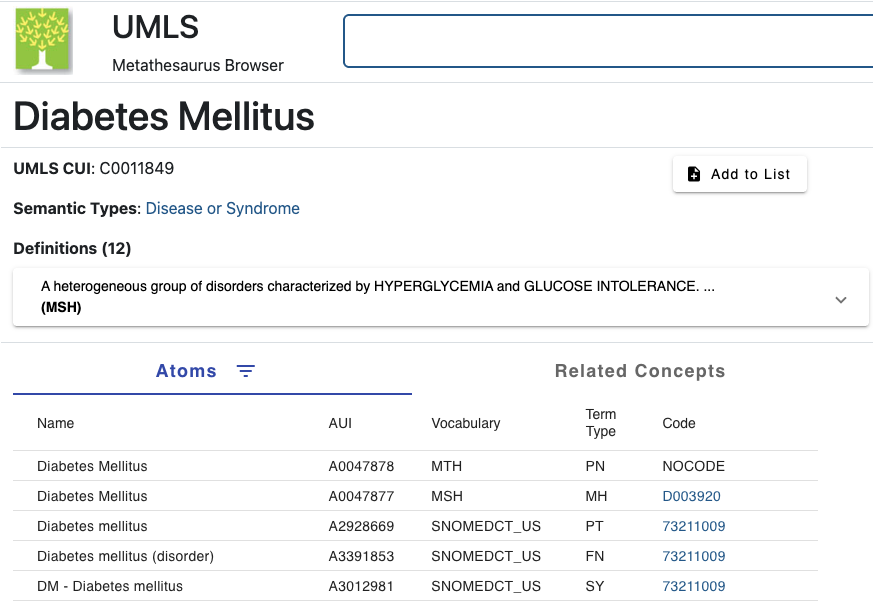

To identify and extract clinically relevant concepts from notes, we translate text into codes based on mappings provided by the Unified Medical Language System (UMLS). To do this, we leverage tools such as cTAKES, NILE, and MetaMap. We recommend the use of NILE and that detailed instructions can be found in the PheCAP tutorial.

For this tutorial, we use Petehr—a NLP toolkit custom built for this tutorial. However, for better performance and in real world applications, we highly recommend using NILE or other similar software.

In this work, we present a lightweight example using PETEHR (Patient-Event Temporal and Hierarchical Representation) to illustrate its application in structuring temporal healthcare data. This example, provided at the end of the discussion, highlights PETEHR’s utility in organizing event sequences and temporal relationships. However, it is important to note PETEHR’s inherent limitations. Specifically, PETEHR focuses on syntactic and temporal structuring of data and does not perform semantic analysis (e.g., contextual interpretation of clinical events, inferring implicit meaning, or resolving ambiguities in unstructured text). This constraint necessitates complementary tools or frameworks for tasks requiring deeper contextual understanding. The example should therefore be interpreted as a demonstration of structural modeling, rather than a comprehensive analytical solution.

MIMIC Notes and Hosp module version difference

In this section, we focus on processing discharge summaries from MIMIC-IV deidentified notes. It’s important to note that the most recent version of the MIMIC-IV note data is version 2.2, whereas the MIMIC-IV Hosp data we are using is from a newer version, version 3.1. This mismatch means there will be patients present in the Hosp data who are missing in the note data.

This situation is typical in real world healthcare systems, where data from different sources or timeframes does not fully align. One way to address this is to ensure that the patient cohort you are analyzing has both note and Hosp data available. Additionally, since the Hosp data is newer you may need to truncate each patient’s records in the Hosp data to align with the last observed note date for that patient.

# Installing Python Toolkit for processing EHR data. For NLP, we recommend you use NILE linked below
# https://celehs.hms.harvard.edu/software/NILE.html

!pip install petehr

import os
import pandas as pd
from petehr import Text2Code

base_directory = os.path.dirname(os.getcwd())
cohort_aggregateddata_nlp_directory = os.path.join(base_directory, 'processed_data', 'step5_cohort_aggregateddata', 'nlp')
os.makedirs(cohort_aggregateddata_nlp_directory, exist_ok=True)

Requirement already satisfied: petehr in /n/data1/hsph/biostat/celehs/lab/va67/anaconda/anaconda3/lib/python3.11/site-packages (0.0.1)

note_directory = os.path.join(base_directory, 'raw_data', 'nlp', 'physionet.org', 'files', 'mimic-iv-note', '2.2', 'note')
os.listdir(note_directory)

['discharge.csv',
 'discharge_detail.csv',
 'index.html',
 'radiology.csv',
 'radiology_detail.csv']


nlp_dictionary_file = os.path.join(base_directory, 'scripts', 'meta_files','NLP_Dict.csv')
nlp_dictionary = pd.read_csv(nlp_dictionary_file, dtype=str)
display(nlp_dictionary)
print(nlp_dictionary.describe())

	STR	CUI
0	pulmonary hypertension nos	C0020542
1	hypertensive pulmonary vascular disease	C0020542
2	hypertension pulmonary	C0020542
3	pulmonary hypertension disorder	C0020542
4	pulmonary hypertensions	C0020542
...	...	...
2975	drug screen qualitative digoxin	C0337449
2976	electrocardiogram myocardial infarction	C0428953
2977	roche brand of bumetanide	C0701009
2978	glaxosmithkline brand of carvedilol	C0719509
2979	pfizer brand of eplerenone	C1144054

2980 rows × 2 columns

                                          STR       CUI
0                  pulmonary hypertension nos  C0020542
1     hypertensive pulmonary vascular disease  C0020542
2                      hypertension pulmonary  C0020542
3             pulmonary hypertension disorder  C0020542
4                     pulmonary hypertensions  C0020542
...                                       ...       ...
2975          drug screen qualitative digoxin  C0337449
2976  electrocardiogram myocardial infarction  C0428953
2977                roche brand of bumetanide  C0701009
2978      glaxosmithkline brand of carvedilol  C0719509
2979               pfizer brand of eplerenone  C1144054

[2980 rows x 2 columns]
                            STR       CUI
count                      2976      2980
unique                     2833       276
top     ventricular tachycardia  C0038454
freq                          4        52

text2cui = Text2Code(nlp_dictionary)

# Loading discharge notes data

discharge = pd.read_csv(os.path.join(note_directory,"discharge.csv"), dtype=str)
display(discharge)

	note_id	subject_id	hadm_id	note_type	note_seq	charttime	storetime	text
0	10000032-DS-21	10000032	22595853	DS	21	2180-05-07 00:00:00	2180-05-09 15:26:00	\nName: ___ Unit No: _...
1	10000032-DS-22	10000032	22841357	DS	22	2180-06-27 00:00:00	2180-07-01 10:15:00	\nName: ___ Unit No: _...
2	10000032-DS-23	10000032	29079034	DS	23	2180-07-25 00:00:00	2180-07-25 21:42:00	\nName: ___ Unit No: _...
3	10000032-DS-24	10000032	25742920	DS	24	2180-08-07 00:00:00	2180-08-10 05:43:00	\nName: ___ Unit No: _...
4	10000084-DS-17	10000084	23052089	DS	17	2160-11-25 00:00:00	2160-11-25 15:09:00	\nName: ___ Unit No: __...
...	...	...	...	...	...	...	...	...
331788	19999828-DS-6	19999828	29734428	DS	6	2147-08-04 00:00:00	2147-08-12 15:36:00	\nName: ___ Unit No: ___...
331789	19999828-DS-7	19999828	25744818	DS	7	2149-01-18 00:00:00	2149-01-19 07:03:00	\nName: ___ Unit No: ___...
331790	19999840-DS-20	19999840	26071774	DS	20	2164-07-28 00:00:00	2164-07-29 14:52:00	\nName: ___ Unit No: ___\...
331791	19999840-DS-21	19999840	21033226	DS	21	2164-09-17 00:00:00	2164-09-18 01:36:00	\nName: ___ Unit No: ___\...
331792	19999987-DS-2	19999987	23865745	DS	2	2145-11-11 00:00:00	2145-11-11 13:13:00	\nName: ___ Unit No: __...

331793 rows × 8 columns

# Check how many patients from the Asthma cohort can be identified in the notes cohort.

print(len(asthma_cohort))

discharge_asthma_cohort = discharge[discharge['subject_id'].isin(asthma_cohort['subject_id'])]

display(discharge_asthma_cohort.describe())

	note_id	subject_id	hadm_id	note_type	note_seq	charttime	storetime	text
count	50286	50286	50286	50286	50286	50286	50284	50286
unique	50286	14958	50286	1	135	25983	50232	50285
top	10001725-DS-12	12468016	25563031	DS	21	2160-06-09 00:00:00	2116-12-03 14:09:00	\nName: ___ Unit No: ___...
freq	1	85	1	50286	2391	9	2	2

# Selecting only the required columns

discharge = discharge[['subject_id','charttime','text']]
display(discharge.head())

	subject_id	charttime	text
0	10000032	2180-05-07 00:00:00	\nName: ___ Unit No: _...
1	10000032	2180-06-27 00:00:00	\nName: ___ Unit No: _...
2	10000032	2180-07-25 00:00:00	\nName: ___ Unit No: _...
3	10000032	2180-08-07 00:00:00	\nName: ___ Unit No: _...
4	10000084	2160-11-25 00:00:00	\nName: ___ Unit No: __...

# Filtering to retain only the notes associated with the patients of interest

asthma_cohort_notes = pd.merge(asthma_cohort,discharge, on=['subject_id'],how='inner')
display(asthma_cohort_notes)

asthma_cohort_notes.dropna(inplace=True)
display(asthma_cohort_notes)

	subject_id	charttime	text
0	10001725	2110-04-14 00:00:00	\nName: ___ Unit No: ___\n \nA...
1	10001884	2125-10-20 00:00:00	\nName: ___ Unit No: ___\n \nA...
2	10001884	2125-10-27 00:00:00	\nName: ___ Unit No: ___\n \nA...
3	10001884	2125-12-03 00:00:00	\nName: ___ Unit No: ___\n \nA...
4	10001884	2125-12-27 00:00:00	\nName: ___ Unit No: ___\n \nA...
...	...	...	...
50281	19757198	2189-09-12 00:00:00	\nName: ___ Unit No: __...
50282	19757198	2191-05-26 00:00:00	\nName: ___ Unit No: __...
50283	19757198	2193-06-23 00:00:00	\nName: ___ Unit No: __...
50284	19757198	2194-02-19 00:00:00	\nName: ___ Unit No: __...
50285	19757198	2194-10-02 00:00:00	\nName: ___ Unit No: __...

50286 rows × 3 columns

	subject_id	charttime	text
0	10001725	2110-04-14 00:00:00	\nName: ___ Unit No: ___\n \nA...
1	10001884	2125-10-20 00:00:00	\nName: ___ Unit No: ___\n \nA...
2	10001884	2125-10-27 00:00:00	\nName: ___ Unit No: ___\n \nA...
3	10001884	2125-12-03 00:00:00	\nName: ___ Unit No: ___\n \nA...
4	10001884	2125-12-27 00:00:00	\nName: ___ Unit No: ___\n \nA...
...	...	...	...
50281	19757198	2189-09-12 00:00:00	\nName: ___ Unit No: __...
50282	19757198	2191-05-26 00:00:00	\nName: ___ Unit No: __...
50283	19757198	2193-06-23 00:00:00	\nName: ___ Unit No: __...
50284	19757198	2194-02-19 00:00:00	\nName: ___ Unit No: __...
50285	19757198	2194-10-02 00:00:00	\nName: ___ Unit No: __...

50286 rows × 3 columns

# Converting Text to CUI (CONCEPT UNIQUE IDENTIFIER)

asthma_cohort_notes['note_cui'] = asthma_cohort_notes['text'].map(lambda x: text2cui.convert(x))
asthma_cohort_notes

	subject_id	charttime	text	note_cui
0	10001725	2110-04-14 00:00:00	\nName: ___ Unit No: ___\n \nA...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
1	10001884	2125-10-20 00:00:00	\nName: ___ Unit No: ___\n \nA...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
2	10001884	2125-10-27 00:00:00	\nName: ___ Unit No: ___\n \nA...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
3	10001884	2125-12-03 00:00:00	\nName: ___ Unit No: ___\n \nA...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
4	10001884	2125-12-27 00:00:00	\nName: ___ Unit No: ___\n \nA...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
...	...	...	...	...
50281	19757198	2189-09-12 00:00:00	\nName: ___ Unit No: __...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50282	19757198	2191-05-26 00:00:00	\nName: ___ Unit No: __...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50283	19757198	2193-06-23 00:00:00	\nName: ___ Unit No: __...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50284	19757198	2194-02-19 00:00:00	\nName: ___ Unit No: __...	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50285	19757198	2194-10-02 00:00:00	\nName: ___ Unit No: __...	C5441729,C5441729,C5441729,C5441729,C5441729,C...

50286 rows × 4 columns

Now that we have the narrative text translated to CUI codes, we can go ahead with the reformatting and cleaning process.

asthma_cohort_missing_notes = pd.DataFrame({'Column': asthma_cohort_notes.columns,'Missing_Values': asthma_cohort_notes.isna().sum()})
display(asthma_cohort_missing_notes)

# Selecting only columns of interest

asthma_cohort_notes=asthma_cohort_notes[['subject_id','charttime','note_cui']]
display(asthma_cohort_notes)

# Rename the time columns to be consisten with other datasets
asthma_cohort_notes = asthma_cohort_notes.rename(columns = {"charttime":"date"})
display(asthma_cohort_notes)

# Cleaning the dates
asthma_cohort_notes["date"] = asthma_cohort_notes["date"].str[:10]
display(asthma_cohort_notes)

	Column	Missing_Values
subject_id	subject_id	0
charttime	charttime	0
text	text	0
note_cui	note_cui	0

	subject_id	charttime	note_cui
0	10001725	2110-04-14 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
1	10001884	2125-10-20 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
2	10001884	2125-10-27 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
3	10001884	2125-12-03 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
4	10001884	2125-12-27 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
...	...	...	...
50281	19757198	2189-09-12 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50282	19757198	2191-05-26 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50283	19757198	2193-06-23 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50284	19757198	2194-02-19 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50285	19757198	2194-10-02 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...

50286 rows × 3 columns

	subject_id	date	note_cui
0	10001725	2110-04-14 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
1	10001884	2125-10-20 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
2	10001884	2125-10-27 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
3	10001884	2125-12-03 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
4	10001884	2125-12-27 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
...	...	...	...
50281	19757198	2189-09-12 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50282	19757198	2191-05-26 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50283	19757198	2193-06-23 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50284	19757198	2194-02-19 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50285	19757198	2194-10-02 00:00:00	C5441729,C5441729,C5441729,C5441729,C5441729,C...

50286 rows × 3 columns

	subject_id	date	note_cui
0	10001725	2110-04-14	C5441729,C5441729,C5441729,C5441729,C5441729,C...
1	10001884	2125-10-20	C5441729,C5441729,C5441729,C5441729,C5441729,C...
2	10001884	2125-10-27	C5441729,C5441729,C5441729,C5441729,C5441729,C...
3	10001884	2125-12-03	C5441729,C5441729,C5441729,C5441729,C5441729,C...
4	10001884	2125-12-27	C5441729,C5441729,C5441729,C5441729,C5441729,C...
...	...	...	...
50281	19757198	2189-09-12	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50282	19757198	2191-05-26	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50283	19757198	2193-06-23	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50284	19757198	2194-02-19	C5441729,C5441729,C5441729,C5441729,C5441729,C...
50285	19757198	2194-10-02	C5441729,C5441729,C5441729,C5441729,C5441729,C...

50286 rows × 3 columns

# Convert the note_cui column to cui list so we can expand them in next step

asthma_cohort_notes['note_cui_list'] = asthma_cohort_notes['note_cui'].apply(lambda x: x.split(',') if x else None)
display(asthma_cohort_notes)

	subject_id	date	note_cui	note_cui_list
0	10001725	2110-04-14	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
1	10001884	2125-10-20	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
2	10001884	2125-10-27	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
3	10001884	2125-12-03	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
4	10001884	2125-12-27	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
...	...	...	...	...
50281	19757198	2189-09-12	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
50282	19757198	2191-05-26	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
50283	19757198	2193-06-23	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
50284	19757198	2194-02-19	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
50285	19757198	2194-10-02	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...

50286 rows × 4 columns

asthma_cohort_notes.dropna(inplace=True)
display(asthma_cohort_notes)

	subject_id	date	note_cui	note_cui_list
0	10001725	2110-04-14	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
1	10001884	2125-10-20	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
2	10001884	2125-10-27	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
3	10001884	2125-12-03	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
4	10001884	2125-12-27	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
...	...	...	...	...
50281	19757198	2189-09-12	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
50282	19757198	2191-05-26	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
50283	19757198	2193-06-23	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
50284	19757198	2194-02-19	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...
50285	19757198	2194-10-02	C5441729,C5441729,C5441729,C5441729,C5441729,C...	[C5441729, C5441729, C5441729, C5441729, C5441...

50286 rows × 4 columns

#Expand the note_cui_list column to have one CUI per row

asthma_cohort_notes = asthma_cohort_notes[['subject_id','date','note_cui_list']]
asthma_cohort_notes = asthma_cohort_notes.explode('note_cui_list')
display(asthma_cohort_notes)

	subject_id	date	note_cui_list
0	10001725	2110-04-14	C5441729
0	10001725	2110-04-14	C5441729
0	10001725	2110-04-14	C5441729
0	10001725	2110-04-14	C5441729
0	10001725	2110-04-14	C5441729
...	...	...	...
50285	19757198	2194-10-02	C5441729
50285	19757198	2194-10-02	C5441729
50285	19757198	2194-10-02	C5441729
50285	19757198	2194-10-02	C5441729
50285	19757198	2194-10-02	C5441729

42090077 rows × 3 columns

# Drop Duplicates

asthma_cohort_notes.drop_duplicates(inplace=True)
asthma_cohort_notes=asthma_cohort_notes.rename(columns={"note_cui_list":"cui"})
display(asthma_cohort_notes)

	subject_id	date	cui
0	10001725	2110-04-14	C5441729
0	10001725	2110-04-14	C0016860
0	10001725	2110-04-14	C0205082
0	10001725	2110-04-14	C0344315
0	10001725	2110-04-14	C0013604
...	...	...	...
50285	19757198	2194-10-02	C5201148
50285	19757198	2194-10-02	C4084203
50285	19757198	2194-10-02	C0033095
50285	19757198	2194-10-02	C0010957
50285	19757198	2194-10-02	C0011847

729164 rows × 3 columns

cui_counts_per_patient = asthma_cohort_notes.groupby(['subject_id', 'cui']).size().reset_index(name='counts')
display(cui_counts_per_patient)

	subject_id	cui	counts
0	10001725	C0001645	1
1	10001725	C0004238	1
2	10001725	C0013404	1
3	10001725	C0013604	1
4	10001725	C0016860	1
...	...	...	...
297382	19999442	C4554100	1
297383	19999442	C4554645	1
297384	19999442	C5201148	1
297385	19999442	C5203119	1
297386	19999442	C5441729	2

297387 rows × 3 columns

For the full notebook with code, please visit here.
