Getting Started: Setting up Workspace and Data Overview

Accessing MIMIC-IV Dataset

MIMIC-IV is a deidentified EHR dataset sourced from BIDMC Hospital. To gain access to MIMIC-IV, follow these steps

  1. Register here to create a physionet account and become a credential user.
  2. Complete the training listed here and submit the trainings here.
  3. Sign the Data User Agreement here.

Once your access is approved, you will receive a notification through your registered email.

Setting up your Compute Environment

  1. Create a workspace to download and process MIMIC-IV data.
  2. Download all the tutorial notebooks into the workspace.
  3. Create a virtual environment and install the required Python libraries.
  4. Download the MIMIC data into the workspace.

For this tutorial, the file structure is organized as below. For Unix-based systems, we provide a setup script that will automatically create the necessary directories and prepare the environment.

EHR_TUTORIAL_WORKSPACE/
├── processed_data/                # Outputs after cleaning & standardization
│
├── raw_data/                      # Original downloaded MIMIC data
│   ├── note_data/
│   │   └── physionet.org/
│   │       └── files/
│   │           └── mimic-iv-note/
│   │               └── 2.2/
│   │                   └── note/
│   │                       └── *.csv.gz
│   │
│   └── structured_data/
│       └── physionet.org/
│           └── files/
│               └── mimiciv/
│                   └── 3.1/
│                       ├── hosp/
│                       │   └── *.csv.gz
│                       └── icu/
│                           └── *.csv.gz
│
└── scripts/                       # Tutorial ipynb notebooks & mapping files
    └── EHR-Processing-Tutorial-main/
        ├── meta_files/
        └── Rollup_Mappings/

The following script can be run on Unix based systems to setup the workspace.

#!/bin/bash

# Set the location variable to the path where you want to create the MIMIC workspace
LOCATION="/path/to/your/workspace"

# If you would like to download and work in your home directory, you can update above to LOCATION="$HOME"

# Check if the workspace folder already exists
if [ -d "${LOCATION}/EHR_TUTORIAL_WORKSPACE" ]; then
  echo "EHR_TUTORIAL_WORKSPACE folder already exists here ${LOCATION}/EHR_TUTORIAL_WORKSPACE"
  exit 0
fi

# Create the workspace directory
mkdir "${LOCATION}/EHR_TUTORIAL_WORKSPACE"
echo "Workspace has been created here ${LOCATION}/EHR_TUTORIAL_WORKSPACE"

# Create the workspace subdirectories
echo "Creating raw_data, processed_data, and scripts subdirectories"
mkdir -p "${LOCATION}/EHR_TUTORIAL_WORKSPACE/raw_data/structured_data" \
         "${LOCATION}/EHR_TUTORIAL_WORKSPACE/raw_data/note_data" \
         "${LOCATION}/EHR_TUTORIAL_WORKSPACE/processed_data" \
         "${LOCATION}/EHR_TUTORIAL_WORKSPACE/scripts"
echo "Workspace has been set up here ${LOCATION}/EHR_TUTORIAL_WORKSPACE"

# Download and extract MIMIC Data Prep scripts from GitHub
echo "Downloading and extracting MIMIC Data Prep scripts from GitHub..."
wget https://github.com/apvidul/EHR-Processing-Tutorial/archive/refs/heads/main.zip -O mimic-data-prep.zip
unzip -q mimic-data-prep.zip -d "${LOCATION}/EHR_TUTORIAL_WORKSPACE/scripts"
mv "${LOCATION}/EHR_TUTORIAL_WORKSPACE/scripts/EHR-Processing-Tutorial-main/"* "${LOCATION}/EHR_TUTORIAL_WORKSPACE/scripts/"

# Cleanup unnecessary files and folders
rm -rf mimic-data-prep.zip "${LOCATION}/EHR_TUTORIAL_WORKSPACE/scripts/EHR-Processing-Tutorial-main"

echo "Creating the Conda environment ehr_tutorial"
conda create --yes --name ehr_tutorial pandas wordcloud jupyter tqdm matplotlib

# Downloading the structured MIMIC data into raw_data/structured_data
wget -r -N -c -np --user ${PHYSIONET_USERNAME} --password ${PHYSIONET_PASSWORD} \
  https://physionet.org/files/mimiciv/3.1/ \
  -P ${LOCATION}/EHR_TUTORIAL_WORKSPACE/raw_data/structured_data

# Downloading the note data into raw_data/note_data
wget -r -N -c -np --user ${PHYSIONET_USERNAME} --password ${PHYSIONET_PASSWORD} \
  https://physionet.org/files/mimic-iv-note/2.2/ \
  -P ${LOCATION}/EHR_TUTORIAL_WORKSPACE/raw_data/note_data

Once MIMIC is downloaded, you are ready to work on this notebook. The data is currently in zipped format, you can go ahead and run the following block to unzip.

import os

# Specifice the tutorial workspace location below
LOCATION = "/n/scratch/users/v/va67/EHR_TUTORIAL_WORKSPACE"

# Build the path to the .gz files using os.path.join
hosp_gz_files_path = os.path.join(LOCATION, "raw_data", "physionet.org", "files", "mimiciv", "3.1", "hosp")

# Run the gunzip command directly in the IPython notebook
print("Please wait, files are being unzipped")
!gunzip {hosp_gz_files_path}/*.gz
print(f"All .gz files in {hosp_gz_files_path} have been unzipped.\n")

note_gz_files_path = os.path.join(LOCATION, "raw_data", "nlp", "physionet.org", "files", "mimic-iv-note", "2.2", "note")
!gunzip {note_gz_files_path}/*.gz

print(f"All .gz files in {note_gz_files_path} have been unzipped.\n")

EHR Data Overview

After gaining access, it is essential to develop a thorough understanding of the EHR data to assemble the elements of interest and create a dataset aligned with the research objectives. This typically involves answering the following questions:

  1. What data is available, and where is it stored?
  2. Which data elements are relevant, and how are they defined?
  3. How is the data organized and linked across files and tables?

These questions are typically addressed by consulting institution specific EHR documentation or the warehouse data manager. For MIMIC-IV, comprehensive documentation is available on the project website here.

For users new to EHR data, we highly recommend watching the MIMIC data tutorial here.

What data is available and where is it stored?

Electronic Health Record (EHR) data can take many forms. For example, billing information and vital signs are typically recorded as tabular data, clinical notes are typically in free text format, ECG recordings generate waveform data, and procedures such as X-rays or CT scans generate image data. These data originate from various systems within the hospital and contain a wealth of information. Today, several frameworks facilitate clinical research using EHR data such as the i2b2 framework from MGB and Harvard and VINCI, maintained by Veterans Affairs, which provide both data and analytical tools to support research and analysis.

EHR data is typically stored in databases. In this tutorial, we will be working with MIMIC data stored as flat files. MIMIC-IV data comes in “modules” based on the source of data generation. Following are the five modules currently made available:

  • hosp - Hospital-level data for patients, including labs, microbiology, and electronic medication administration records.
  • icu - ICU-level data, including event tables (e.g., chart events) identical in structure to MIMIC-III.
  • ed - Data from the emergency department.
  • cxr - Lookup tables and metadata from MIMIC-CXR, enabling linkage to MIMIC-IV.
  • note - De-identified free-text clinical notes.

Below is a brief summary of the date contained in these modules

Data type Data contents Available at Major tables / files Primary timestamps
Diagnoses ICD-9/10 diagnosis codes per admission MIMIC-IV (hosp) diagnoses_icd, d_icd_diagnoses Admission window (admittime, dischtime)
Procedures ICD-9/10-PCS, CPT/HCPCS events MIMIC-IV (hosp) procedures_icd, hcpcsevents, d_icd_procedures, d_hcpcs Admission window; event dates (if present)
Medications Orders & administrations MIMIC-IV (hosp) prescriptions, emar, emar_detail starttime, stoptime, charttime
Laboratory results Results + units MIMIC-IV (hosp) labevents, d_labitems charttime
Microbiology Cultures, organisms, sensitivities MIMIC-IV (hosp) microbiologyevents charttime / event time
ICU flowsheets Vitals, assessments, outputs MIMIC-IV (icu) chartevents, outputevents, icustays, d_items charttime
Clinical notes Discharge, radiology, etc. (text) MIMIC-IV-Note note charttime (or note time)
Chest X-ray images DICOM/JPG images + study/series metadata MIMIC-CXR Image files + metadata CSVs Study time / acquisition time
ECG waveforms 10-sec, 12-lead diagnostic ECG waveforms MIMIC-IV-ECG WFDB waveform files + metadata Acquisition time
ED stays (optional) Triage, meds, vitals during ED encounter MIMIC-IV-ED edstays, triage, vitalsign ED times (arrival, discharge, etc.)

For our tutorial, we will be working with MIMIC-IV hosp and note modules.

Which data elements are relevant, and how are they defined?

There are certain key data elements that are foundational for most EHR analyses.

Key data element Description Examples in MIMIC-IV
Unique Patient ID Patient identifier used across all tables and encounters subject_id
Event A clinical record that something happened/was recorded Diagnoses (diagnoses_icd); Meds (prescriptions); Labs (labevents); Procedures (procedures_icd, hcpcsevents)
Time When the event occurred or was recorded Event times (charttime, starttime, stoptime); admission window (admittime, dischtime) from admissions

The hosp module consists of all data acquired from the hospital wide electronic health record. This includes patient information, lab measurements, microbiology, medication administered, and billed diagnoses. More information on tables in this module can be read on MIMIC IV documentation here. Depending on your research needs, multiple tables may be relevant. Below, we list the tables we will be using in this tutorial.

Type Table Purpose / contents Key element(s) provided Primary code fields Primary time field(s) or anchor Typical join keys Notes
Data Dictionary d_hcpcs CPT/HCPCS code definitions Codes hcpcs_cd — Link to hcpcsevents.hcpcs_cd
Data Dictionary d_icd_diagnoses ICD-9/10 diagnosis code definitions Codes icd_code, icd_version — Link to diagnoses_icd
Data Dictionary d_icd_procedures ICD-9/10 procedure code definitions Codes icd_code, icd_version — Link to procedures_icd
Data Dictionary d_labitems Lab item dictionary (labels, categories, units metadata) Codes itemid — Link to labevents.itemid
Event Table diagnoses_icd Billed ICD diagnosis codes per hospitalization Patient ID · Event · Codes icd_code, icd_version Admission window (admittime→dischtime) subject_id, hadm_id No event timestamp in table
Event Table prescriptions Medication orders Patient ID · Event · Time Local drug fields / ndc (opt.) starttime, stoptime subject_id, hadm_id Map to RxNorm downstream if needed
Event Table labevents Laboratory measurements (values + units) Patient ID · Event · Time · Codes itemid charttime subject_id, hadm_id (often) Values in valuenum, units in valueuom
Event Table hcpcsevents CPT/HCPCS billed events during hospitalization Patient ID · Event · Time · Codes hcpcs_cd chartdate subject_id, hadm_id (Typo fix: table is hcpcsevents)
Event Table procedures_icd ICD-9/10-PCS billed procedures Patient ID · Event · Codes icd_code, icd_version Admission window (admittime→dischtime) subject_id, hadm_id No event timestamp in table
Patient Metadata admissions Admission episodes (in/out times, service, outcomes) Patient ID · Time — admittime, dischtime (± deathtime) subject_id, hadm_id Use as time anchor for Dx/Proc tables
Patient Metadata transfers Unit/ward movements within the hospital Patient ID · Time — intime, outtime subject_id, hadm_id Useful for location-aware analyses
Patient Metadata patients Demographics and anchor fields Patient ID — (Optional) date of death subject_id No codes; demographics only

How is the data organized and linked across files and tables?

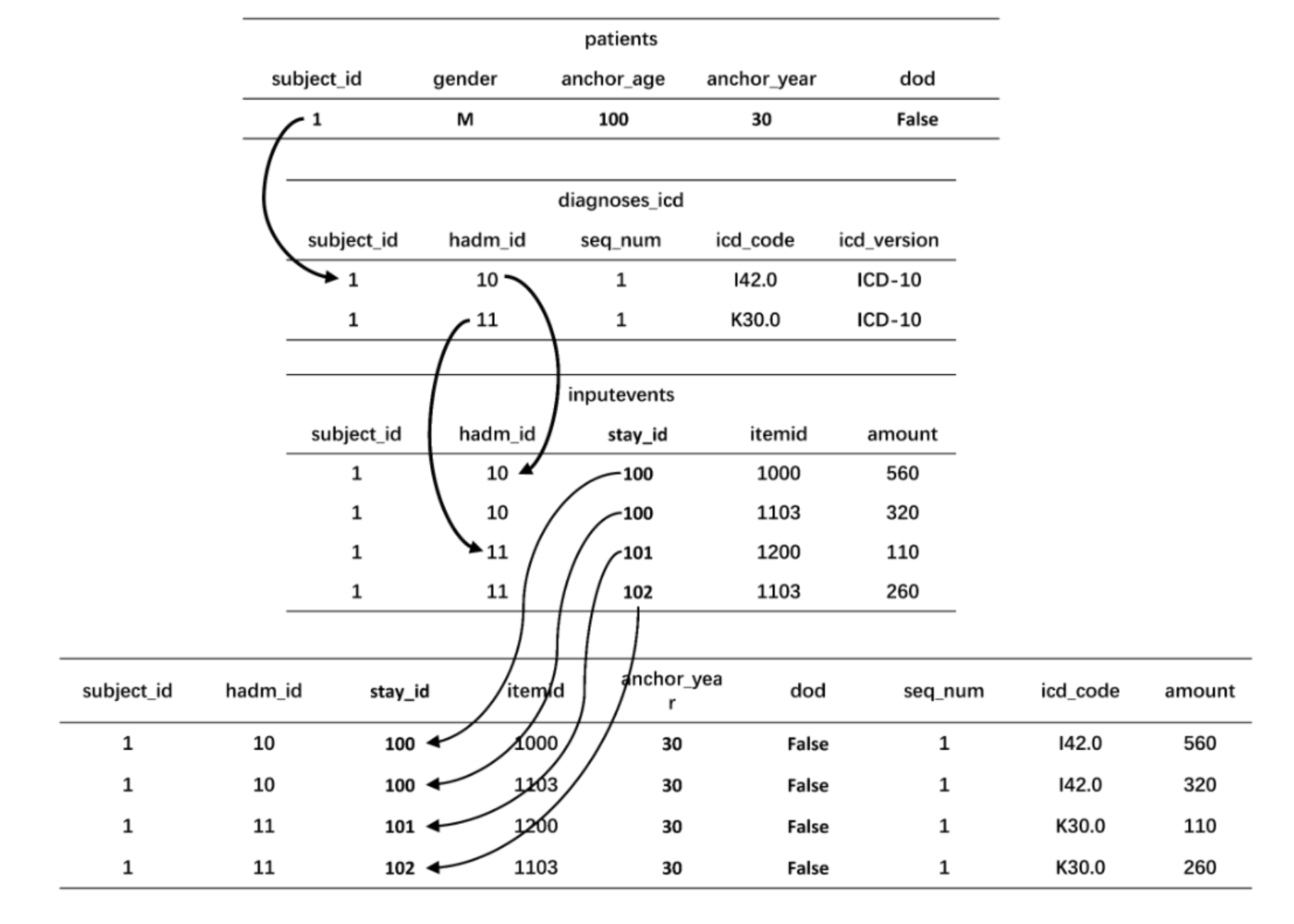

In EHR data, information can be spread across multiple tables or datasets. You will need to link data from different tables to create comprehensive dataset depending on your research needs. One of the key aspects for linking data is identifiers. The following are three major identifiers are used in MIMIC data.

  • SUBJECT_ID: This is a patient level identifier. The patients tables contains demographics for each unique patient
  • HADM_ID: This is a hospital level identifier provided in the hosp module. Each unique hospital admission for a patient gets a unique id.
  • STAY_ID: All ICU admissions within 24 hours of each other are grouped and assigned an identifier.

Screenshot 2025-02-10 at 11.14.51 AM.png

If a patient has multiple admissions at the hospital, we will have multiple hadm_id but only a single subject_id.

If a patient has multiple ICU admissions during the same hospital stay, you will have multiple stay_id but a single hadm_id and a unique subject_id.

Before diving into EHR data preprocessing, it is crucial to first obtain an overview of the EHR datasets in order to identify the limitations of their use.
The complete tutorial notebook for this segment is available here.
To access the full collection of tutorial notebooks, tools, visualizations, and relevant metadata files, please register here.
